MySQL to SQL Server Migration: A Comprehensive Tutorial

Imagine a mid-sized retail company’s operations data stored in MySQL while finance and reporting are run off SQL Server. Every week, someone manually exported CSVs, emailed them across teams, and re-imported them just to generate reports. It was slow, error-prone, and left everyone asking, “Why isn’t this automated by now?”

That’s the reality for many businesses juggling multiple database systems. Eventually, the need arises to migrate MySQL data to SQL Server, maybe to standardize platforms, take advantage of SQL Server’s enterprise features, or simply follow a company-wide tech mandate.

But let’s be real: database migration sounds scary. Between schema mismatches, data integrity concerns, and the fear of downtime, it’s easy to stall before you even begin. And depending on the scale, one wrong move can turn into hours of cleanup.

This guide will break down the most common methods (manual scripting, SQL Server Migration Assistant, ODBC-based transfers, and cloud-based ETL tools like Skyvia).

Each approach is covered with clear pros, cons, and best-use scenarios, so you can choose based on your technical comfort level, business needs, and future scalability.

Table of Contents

  1. Why Migrate From MySQL to SQL Server?
  2. Essential Pre-Migration Steps: Planning for Success
  3. How to Migrate from MySQL to SQL Server
  4. Method 1: Manual Export/Import (Scripting)
  5. Method 2: Using SQL Server Migration Assistant (SSMA) for MySQL
  6. Method 3: Migrating MySQL to SQL Server Using ODBC Driver
  7. Method 4: Using Cloud-Based ETL/Migration Tools
  8. Key Challenges and How to Address Them
  9. Conclusion

Why Migrate From MySQL to SQL Server?

So why do so many teams decide to move their data from MySQL to SQL Server? Here are a few of the most common reasons that tend to spark that shift.

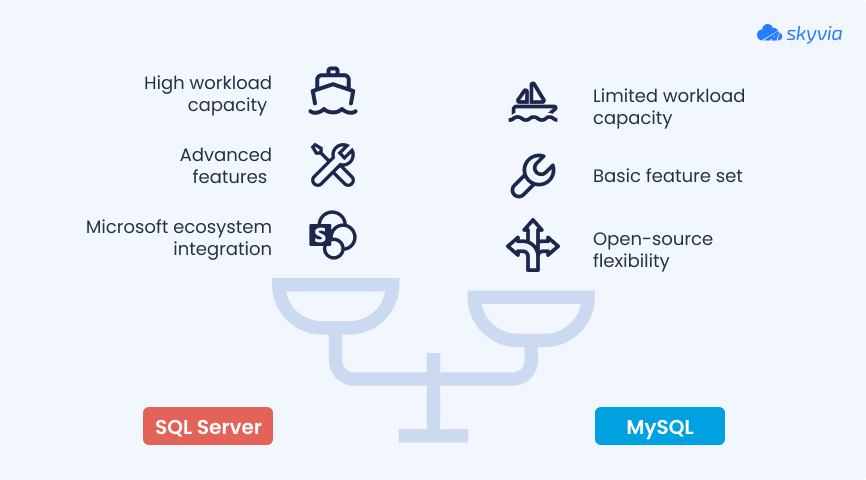

Why Migrate From MySQL to SQL Server?

1. Tighter Integration with the Microsoft Ecosystem. SQL Server fits right in if your organization leans on Azure, builds apps in .NET, or uses Power BI for reporting. It plays nicely with Microsoft’s broader stack, which can streamline everything from identity management to cloud scaling and native analytics.

2. More Advanced Features, Out of the Box. SQL Server brings serious muscle regarding analytics, security, and high availability. Built-in features like row-level security, partitioning, columnstore indexes, and Always On availability groups aren’t just nice. They’re often mission-critical in enterprise environments.

3. Handling More Demanding Workload. At a certain point, performance starts to matter more, whether it’s for complex reporting, concurrent queries, or large transactional loads. SQL Server tends to scale better in high-demand scenarios, with features optimized for enterprise-class performance tuning and resource management.

4. Vendor Consolidation or Internal IT Mandates. Sometimes, the decision isn’t technical at all. It’s strategic. Your IT team might be consolidating platforms for easier support and license management, or you’ve merged with a company already standardized on SQL Server. Either way, aligning tools across teams can simplify long-term operations.

5. End of Life or Support Concerns with MySQL. Support can get sketchy fast if you’re running an older MySQL version, especially community builds. Losing critical patches or compatibility updates is a ticking time bomb for data teams. Migrating to SQL Server ensures continuity with a fully supported platform and long-term roadmap.

Essential Pre-Migration Steps: Planning for Success

Before you think about moving data, let’s talk about planning. A solid migration plan can save you from last-minute surprises, data loss, and weekend-long fire drills. Preparation makes all the difference, whether you’re doing a quick one-off migration or setting up a long-term sync.

Database Assessment

Start with a deep dive into your current MySQL setup. Think of this like surveying a building before remodeling.

  • Review your schema. List all tables, views, stored procedures, triggers, and functions. Complex logic in MySQL won’t always translate cleanly to SQL Server, so note anything that could be tricky.
  • Watch out for data type mismatches. Not all MySQL types have a direct match in SQL Server. For example, TINYINT(1) often maps to a BIT, and TEXT fields might need to become VARCHAR(MAX) depending on usage.

Tip: Keep a reference table of standard mappings handy; it’ll save you time later.

  • Size matters. Estimate how much data you’re moving and how fast your network can realistically handle it. A few gigabytes over Wi-Fi? Probably okay. Terabytes over a slow VPN? That needs a rethink.

Define Migration Strategy

Not every migration looks the same. Before you choose your method, get clear on your goals and constraints

  • One-time move or a phased rollout? Or you may need ongoing sync until the complete switch is done. This choice affects the tools you’ll use and how you’ll test.
  • What’s your downtime window? Can the system be down for an hour? A weekend? Or not at all? Knowing this upfront helps you rule out some options early.
  • Who’s involved? Consider the resources you’ll need: developers, DBAs, infrastructure support, and ensure everyone’s aligned. You don’t want to scramble for permissions or tools mid-migration.

Backup Everything

Yes, everything. And yes, even if it’s “just a test.” Before you touch anything, take a complete, verified backup of your MySQL database. This step is your safety net if something goes sideways. Test restoring it too, just to be safe.

Prepare the Target Environment

Your SQL Server should be ready before the first data packet flies across the wire.

  • Ensure you’re running a compatible version of SQL Server.
  • Double-check that it has enough storage, memory, and CPU headroom to handle the incoming load.
  • Don’t forget permissions. Depending on your method, you’ll need write access, the ability to create objects, and possibly manage linked servers or external data sources.

How to Migrate from MySQL to SQL Server

There’s no single “right” way to migrate. It all depends on your team’s skill set, how much control you need, and how hands-off (or hands-on) you want to be.

Let’s look at the four main approaches we’ll cover in this guide to make things easier.

  1. Manual Export/Import (Scripting)
  2. Using SQL Server Migration Assistant (SSMA) for MySQL
  3. Migrating MySQL to SQL Server Using ODBC Driver
  4. Using Cloud-Based ETL/Migration Tools

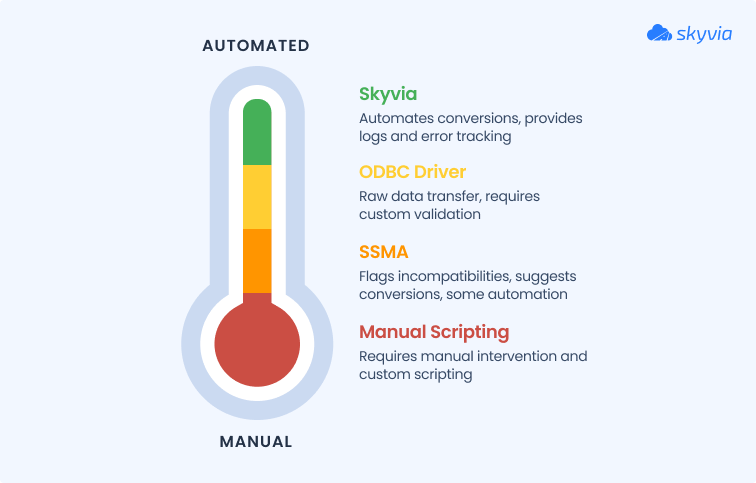

You can think of them as sitting on a scale, from fully manual to completely automated. Each comes with trade-offs, so choosing the right one means matching the tool to your specific business case.

Here’s a quick comparison to help you get a feel for what fits best:

Method GroupMethod
Best For
Skill LevelCustomizabilityAutomation
Manual Export/Import with SQL Scripts Small databases, one-time jobs, full control. Intermediate+ Very High None
Native Tool SQL Server Migration Assistant (SSMA) Structured migrations with schema + data handling. Intermediate Moderate Partial (semi-automated)
ODBS Based ODBC Driver + Linked Server One-off transfers or hybrid setups. Intermediate–Advanced Moderate Limited
Cloud-Based/ ETL No-Code Tools (e.g., Skyvia) Ongoing sync, low-code teams, rapid deployment. Beginner–Intermediate Low–Moderate High (fully automated)

Method 1: Manual Export/Import (Scripting)

This is the old-school, roll-up-your-sleeves method. You export the schema and data from MySQL as SQL scripts, tweak them as needed, and then run them against SQL Server. It gives you complete control over every step, but it also means more hands-on work.

Best For

  • Small to mid-size databases.
  • Projects where precision matters more than speed.
  • Developers who like knowing exactly what’s going on under the hood.

Pros

  • Total control. You see and manage every change to the schema and data types.
  • No surprises. You can catch and fix issues before they get into SQL Server.
  • Lightweight. No need for extra tools, just your SQL editor and a little patience.

Cons

  • Time-consuming. You’ll spend a fair chunk of time massaging those scripts, especially if your schema is complex.
  • Error-prone. One small oversight in a script, and the migration hits a wall.
  • Manual type mapping. MySQL and SQL Server don’t speak the same dialect. You’ll have to translate column types manually.

Method 2: Using SQL Server Migration Assistant (SSMA) for MySQL

SSMA for MySQL is the go-to tool for those looking to streamline their MySQL to SQL Server migration without getting bogged down in manual scripting. It’s a free utility from Microsoft that automates much of the heavy lifting, making the migration process more efficient and less error-prone.

Best For

  • Medium to large databases where manual migration would be cumbersome.
  • Teams seeking a guided, semi-automated migration process.
  • Situations where identifying and resolving schema incompatibilities upfront is crucial.

Step-by-Step Guide

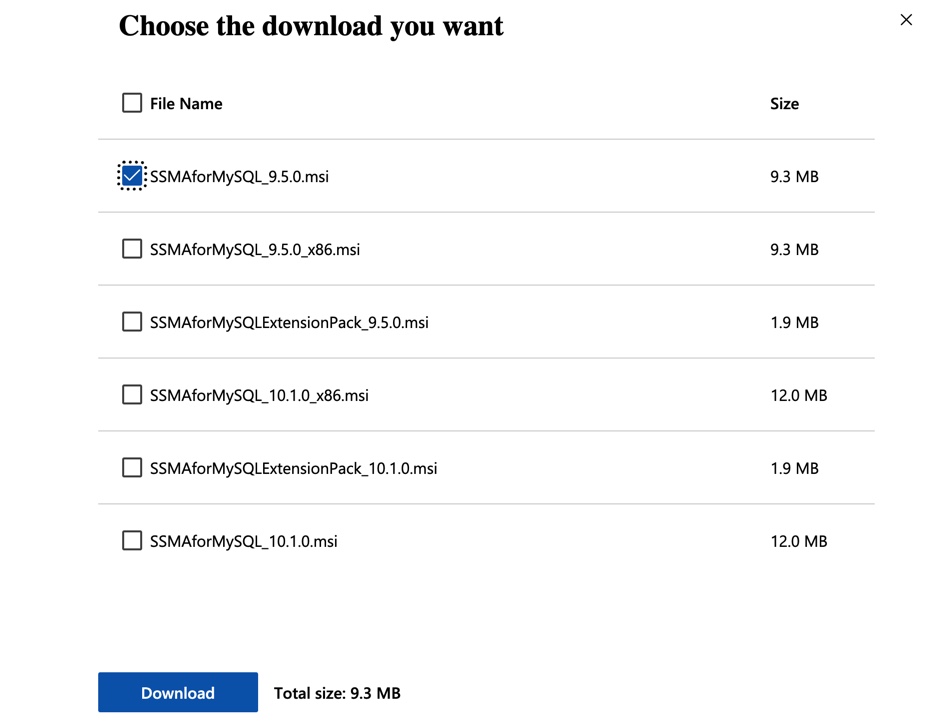

  1. Install SSMA for MySQL. Download and install the latest version from Microsoft’s official site. Ensure that the MySQL ODBC driver is also installed on your system.
SSMA Download

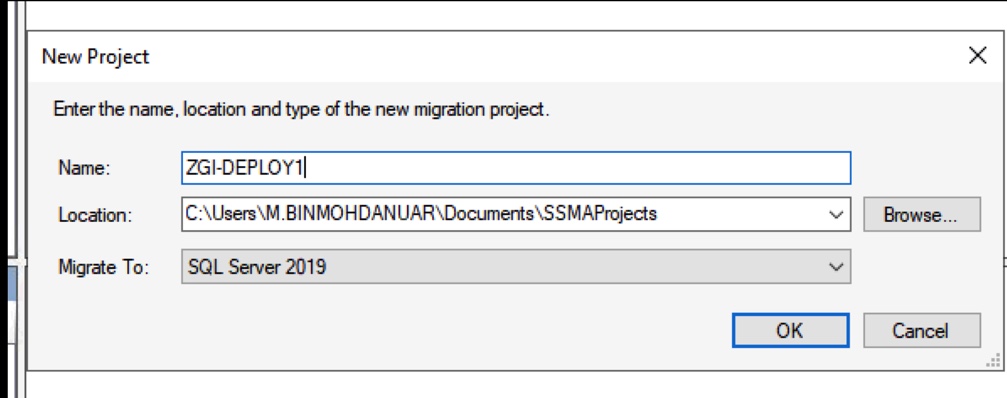

  1. Create a Migration Project. Launch SSMA and create a new project. Specify the target SQL Server version and project location.
New Migration Project

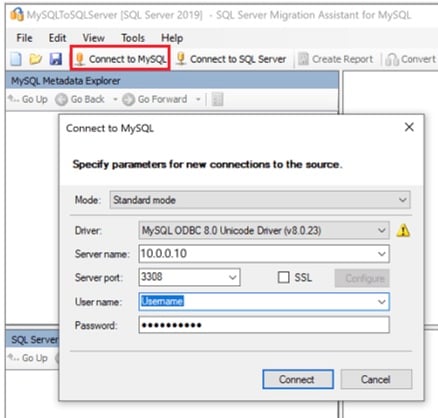

  1. Connect to MySQL (Source). Provide the connection details for your MySQL database:
  • Provider: Select the appropriate MySQL ODBC driver (e.g., MySQL ODBC 5.1 Driver).
  • Mode: Choose Standard mode to enter server details manually.
  • Server name: Enter your MySQL server’s hostname or IP address.
  • Server port: Typically, this is 3306 for MySQL.
  • User name and Password: Provide credentials with at least CONNECT, SHOW, and SELECT privileges.
  • SSL: If your MySQL server requires SSL, check this option and configure the necessary certificates.
Connect to MySQL

Note: Once connected, SSMA will display the available schemas.

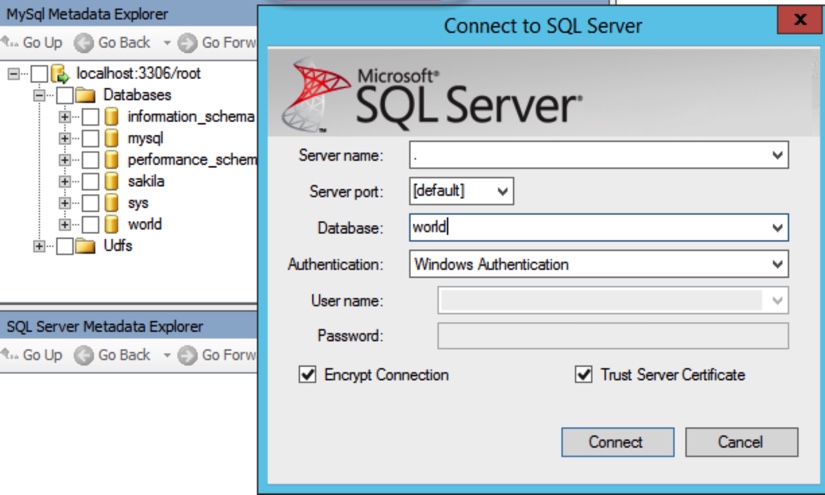

  1. Connect to SQL Server (Target). Enter the connection information for your SQL Server instance:
  • Server name. Enter your SQL Server instance’s name or IP address.
  • Authentication. Choose between Windows Authentication or SQL Server Authentication.
  • User name and Password. If using SQL Server Authentication, provide the necessary credentials.
  • Database. Select an existing database from the dropdown list, or enter a new name to create a new database on the target server.
  • Encrypt connection. Optionally, check this box to encrypt the connection.
MySQL Metadata Explorer

Note: If the target database doesn’t exist, SSMA can create it for you.

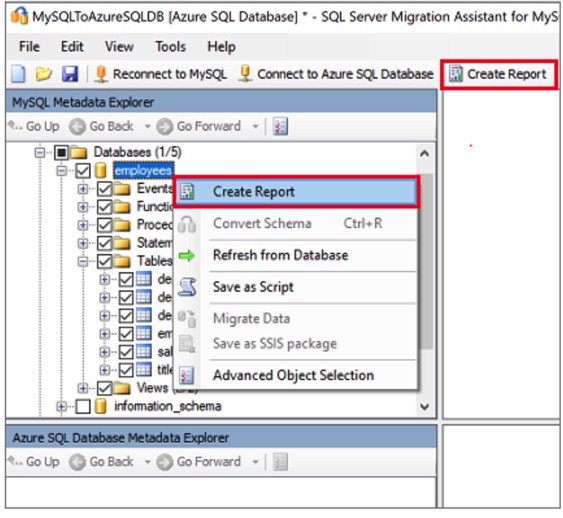

  1. Assess MySQL Database Objects. Use the “Create Report” feature to analyze the MySQL schema. SSMA will generate an HTML report that provides conversion statistics, highlights potential issues, and offers recommendations for resolving them.
Create report

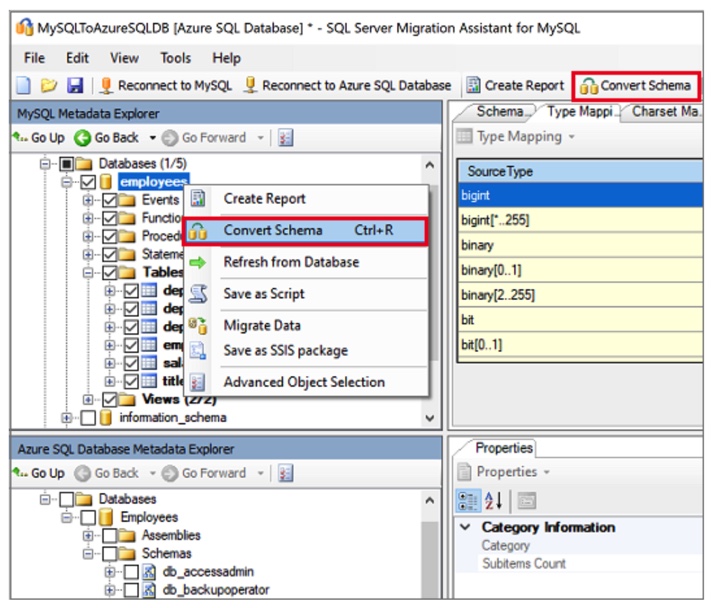

  1. Convert Schema. After reviewing the assessment report, convert the MySQL schema to SQL Server format. Address any issues that SSMA flags during this process.
Convert schema

Note: To adjust data type mappings (if necessary), navigate to Tools > Project Settings > Type Mapping. Here, you can customize how MySQL data types are mapped to SQL Server data types.

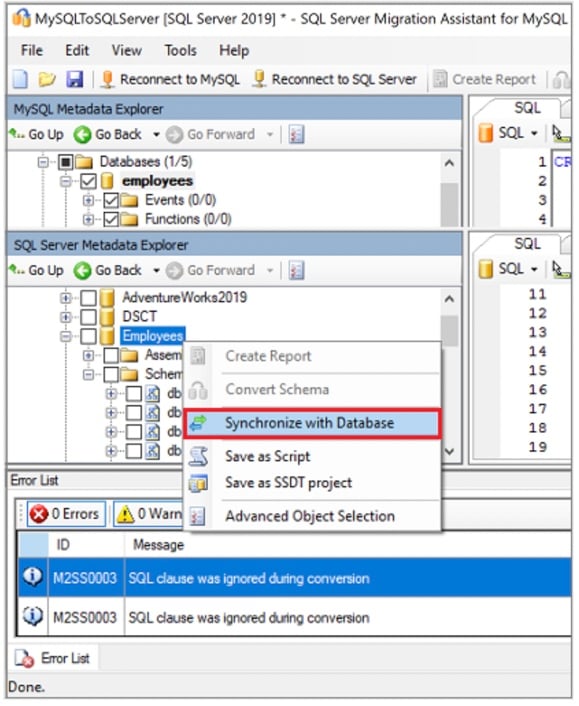

  1. Synchronize Schema with SQL Server. Apply the converted schema to the target SQL Server database by synchronizing it through SSMA.
Synchronize with Database

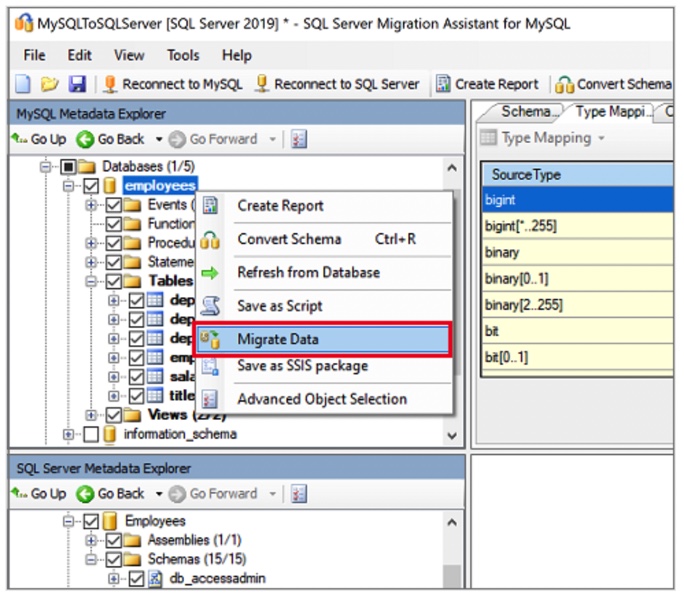

  1. Migrate Data. Right-click the database or specific object you want to move in the MySQL Metadata Explorer and choose “Migrate Data.” Or head over to the Migrate Data tab.
Migrate data

Note: Check the box next to the database name if you’re migrating everything in one go. To cherry-pick tables, expand the database, then the Tables node, and tick only the ones you want.

  1. View the Data Migration Report when migration is finished.

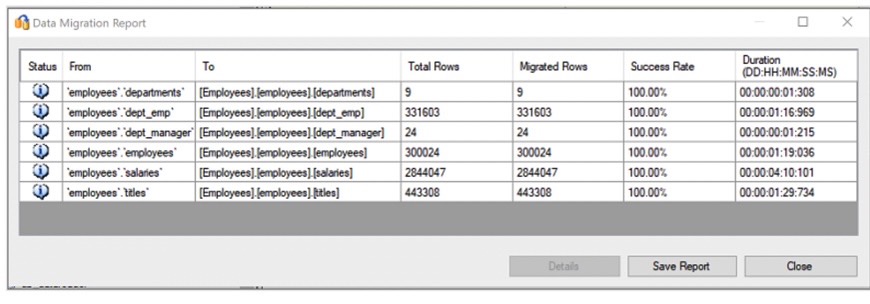

Data Migration report

Pros

  • Automated Schema and Data Migration. SSMA handles schema conversion and data transfer, reducing manual effort.
  • Detailed Assessment Reports. Provide insights into potential issues before migration begins.
  • Customizable Type Mappings. It provides adjustments to data type conversions to fit specific users’ needs.

Cons

  • Learning Curve. It may require some time to learn the tool’s interface and features.
  • Not Foolproof. Complex schemas or unsupported features might still need manual intervention.
  • Requires Setup. Installation and configuration of prerequisites, like ODBC drivers, are necessary.

Method 3: Migrating MySQL to SQL Server Using ODBC Driver

This method relies on the ODBC (Open Database Connectivity) driver to hook MySQL to the SQL Server. It allows users to pull in data with tools like SQL Server Management Studio (SSMS) or Linked Servers. It’s not a one-click solution, but it gives plenty of flexibility, especially if needed to move specific tables or run queries without diving into a full migration process.

Best For

  • One-off or partial data transfers.
  • Scenarios where you need to query MySQL data from SQL Server.
  • Users comfortable working in SSMS and writing a bit of SQL.

Step-by-Step Guide

1. Install MySQL ODBC Driver

Download and install the MySQL ODBC driver on the machine where SQL Server is installed. You can download the MySQL ODBC driver here

2. Create a DSN

  1. Go to Control Panel -> Administrative Tools -> Data Sources (ODBC).
  2. Navigate to System DSN and click the Add.
  3. Choose the MySQL ODBC driver from the list and click Finish.
  4. Enter the server name, database name, username, and password to connect to your MySQL database.
  5. Click OK to save the DSN.

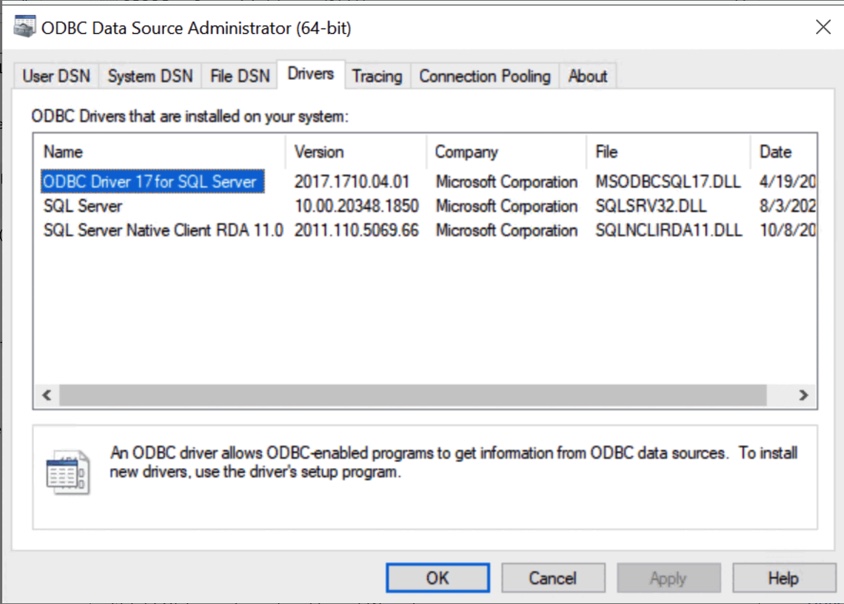

ODBC Data Source

Once the ODBC DSN is set up, it allows applications, including MySQL export tools, to connect to the MySQL database through the ODBC driver. The export tool can use this ODBC connection to access the MySQL database and export the data into a SQL script or dump file.

3. Export MySQL Data

  1. Use MySQL’s export tools like mysqldump or a MySQL GUI to export the MySQL database as an SQL script or dump file.
  2. If you use mysqldump, you can run a command like:
mysqldump -u username -p database_name > dump.sql

4. Import Data into SQL Server

  1. Open SQL Server Management Studio (SSMS) on the machine where SQL Server is installed.
  2. Connect to your SQL Server instance.
  3. Create a new database where you’ll import the MySQL data, if necessary.
  4. Open a new query window.
  5. Use SQL Server’s sqlcmd utility to execute the SQL script generated from MySQL.
  6. Execute the script with the following command:
sqlcmd -U username -P password -S server_name -d database_name -i dump.sql

Replace username, password, server_name, and database_name with appropriate values.

  1. Alternatively, you can open the SQL script in SSMS and execute it directly.

Pros

  • Flexible access. Easily query MySQL data without migrating everything up front.
  • No extra tools needed. Just SSMS and the ODBC driver.
  • Good for hybrid environments. Works well when you’re integrating systems.

Cons

  • Not ideal for full migrations. Better suited for selective transfers or integration.
  • Performance can lag, especially with large datasets or complex joins.
  • Manual setup. Users must configure DSNs and write the queries.

Method 4: Using Cloud-Based ETL/Migration Tools

If the company prefers to take the load off its team and let the cloud handle the heavy lifting, ETL and migration platforms like Skyvia can be a lifesaver. These tools are built to move data at scale, often with minimal setup and a slick UI that keeps things smooth.

Best For

  • Larger, ongoing migrations or syncing setups.
  • Teams who’d rather focus on outcomes than wrangling SQL scripts.
  • Organizations that are already invested in cloud platforms or SaaS tools.

Step-by-Step Guide

With Skyvia, you can import data from MySQL to SQL Server in three easy steps:

  • Create a connection to SQL Server.
  • Create a connection to MySQL.
  • Create and run import integration.

To proceed with the steps described below, you need a Skyvia account. Obtain it for free here

connect any data

Create a Connection to MySQL

To establish a connection to MySQL in Skyvia:

  1. Go to + Create New > Connection
Skyvia interface
  1. Choose MySQL.
  2. Specify the database server hostname, port, user name, password, and database.
MySQL connection by Skyvia
  1. Click Create Connection

Optionally, you can use the SSL and SSH connections to MySQL.

Create a Connection to SQL Server

To connect to MySQL in Skyvia:

  1. Go to + Create New > Connection
  2. Choose SQL Server.
  3. Specify the database server hostname, port, user name, password, and database.
SQL Server connection by Skyvia
  1. Click Create Connection

Optionally, you can use the SSL and SSH connections to SQL Server.

Create Import Integration

  1. Go to + Create New > Integration > Import.
  2. Choose the Data Source type.
  3. Select MySQL as the Source and SQL Server as the Target.
Skyvia Import
  1. Click Add new to add a new import task. You can add any number of import tasks to your integration.
  2. Select the table to import data from and click Next.
  3. Select the table to import data to and click Next.
  4. Map the fields in Source and Target. Skyvia will try to map fields automatically.
  5. Save and Run the import integration. Additionally, you can create a schedule for the automated runs of your integration.
Skyvia schedule
  1. On the Monitoring tab, you can check the progress of your import and view previous import logs and details.

Get More With Skyvia

Importing is just one slice of what Skyvia can do. It unlocks a toolkit built to make managing, syncing, and automating data less challenging.

Here’s the kind of stuff you can do with it:

  • Back it all up. Set up automatic backups and restores so cloud data is always safe and recoverable.
  • Keep systems in sync. Need MySQL and SQL Server to stay in lockstep? Skyvia can sync them both ways, no sweat.
  • Build smarter pipelines. Connect multiple sources, run complex transformations, and route data where needed.
  • Automate everything. Trigger actions based on changes, add logic and steps, and build workflows.
  • Create live data access points. Turn data into secure OData endpoints for BI tools and apps to connect to your data in real time.
  • Replicate for real-time reporting. Pipe data straight into your warehouse for up-to-the-minute dashboards.
  • Swap CSVs like a pro. Upload, download, and move CSVs between systems without the usual hassle.
  • Stay on top of it all. Get detailed logs, alerts, and error handling to smooth data flow.
  • Connect to pretty much anything. With 200+ connectors (Salesforce, MySQL, Google Sheets, etc.), you’ve got options.

And the best part? It’s no-code and cloud-based, so whether you’re an IT pro or just data-curious, you can handle serious workflows from your browser, no installs or downloads.

The flexible pricing starts from $79 for basic integration and ETL scenarios. You may also use the platform for free.

explore pricing

Pros

  • Easy to set up. You don’t need to be a DBA to get rolling.
  • Great UI/UX. Most platforms are clean, guided, and full of helpful prompts.
  • Automation-ready. Built-in scheduling, error handling, and incremental loads.

Cons

  • Limited customization. Advanced users might find the customization options limited compared to scripting solutions.
  • Less control. You trade some hands-on precision for convenience.
  • Platform lock-in. Some tools want you to stay in their ecosystem.

Key Challenges and How to Address Them

No migration is ever totally pain-free, but knowing the usual trouble spots and how to handle them makes a big difference. Here’s a quick rundown of the most common headaches when moving from MySQL to SQL Server and how different tools stack up when handling them.

Integration methods

Data Type Mapping

Data type mismatches are among the first things that’ll trip you up. MySQL and SQL Server don’t always see data eye to eye.

For example

  • ENUM in MySQL? SQL Server doesn’t have it. You’ll usually map it to a string or a lookup table.
  • DATETIME? MySQL allows funky values and looser precision than SQL Server will tolerate.

How tools handle it:

  • Manual scripting. You’re on your own here. Expect to tweak column types line by line.
  • SSMA. Flags incompatible types in its assessment report and suggests conversions.
  • ODBC Driver. Think of this as the raw data pipe that just moves bytes. There’s no type validation or mapping help built in, so if a MySQL field doesn’t align nicely with SQL Server’s expectations, you’ll hit errors or get weird data unless you handle the mapping yourself in queries.
  • Skyvia. Handles many common conversions behind the scenes, especially with standard data types, but it’s less transparent about every detail, so test results are key.

Schema Object Conversion

Tables and columns are one thing, but when you start talking about stored procedures, triggers, and functions, that’s a different game. MySQL and SQL Server use completely different procedural languages (MySQL SQL/PSM vs. T-SQL), and direct translations are rarely perfect.

How tools handle it:

  • Manual scripting. You’ll need to rewrite these manually, especially if they contain control-of-flow logic (IFs, loops, etc.).
  • SSMA. It flags what it can’t convert, gives you a heads-up, and lets users copy out the raw MySQL code to start reworking it in T-SQL.
  • ODBC Driver. Completely out of scope. It’s not even aware these objects exist.
  • Skyvia. Keeps things simple. It focuses on migrating schemas and data, not procedural logic. So, if you’ve got stored procs and triggers, plan to move those separately.

Data Integrity and Validation

Just because the data “migrated” doesn’t mean it landed correctly. You need to confirm:

  • Row counts match.
  • Key data fields are intact.
  • No nulls, duplicates, or corrupted values.

How tools handle it:

  • Manual scripting. It’s up to you to write post-migration checks and validation scripts.
  • SSMA. No built-in validation, but it gives enough transparency for you to write your own.
  • ODBC Driver. No validation at all. It executes your query, and that’s it. You’ll need custom checks to confirm anything.
  • Skyvia. Provides clear logs, row-level stats, and error tracking for every import.

Downtime Management

Nobody wants extended downtime. You’ve got two ways to go:

  • Complete cutover. Migrate everything at once; switch over.
  • Phased. Migrate in stages, sync data as needed, then flip the switch.

How tools handle it:

  • Manual scripting. Slow, manual, and more complex to automate, but gives you full control over timing.
  • SSMA. Better for test-and-switch cutovers than phased syncs.
  • ODBC Driver. It works best for partial loads or ongoing access but is not designed for full migrations or sync scenarios.
  • Skyvia. Made for this. You can schedule syncs, automate retries, and minimize downtime.

Conclusion

Migrating from MySQL to SQL Server might sound like a tall order, but it’s totally doable, even smooth with the right tools and a clear plan.

We looked at four solid methods:

  • Manual Export/Import gives you full control but is hands-on and stress-free.
  • SQL Server Migration Assistant (SSMA) offers a guided path with helpful diagnostics and schema conversion tools.
  • ODBC Driver is lightweight and flexible, ideal for targeted data pulls or linking systems. But it’s raw and low-level.
  • Skyvia might be a shortcut. It’s cloud-based, no-code, and moves information quickly, reliably, and stresslessly.

Each method is valid, depending on the team’s skills, the complexity of data, and how much downtime you can afford.

If you’re looking to skip the grunt work and avoid getting buried in scripts or config files, Skyvia brings a lot to the table. You get automation, scheduling, built-in validation, and a clean UI from the browser.

Explore perfect fit

F.A.Q. for MySQL to SQL Server

Not fully. Tools like SSMA can identify and extract them, but you’ll usually need to rewrite the logic manually since MySQL and SQL Server use different procedural languages.

For no-code, hassle-free migrations, Skyvia is one of the easiest options. If you’re okay with a guided but more technical approach, SSMA is also pretty solid.

Yes, it’s a free tool from Microsoft designed to help migrate MySQL databases to SQL Server, including schema and data conversion.

Nata Kuznetsova
Nata Kuznetsova
Nata Kuznetsova is a seasoned writer with nearly two decades of experience in technical documentation and user support. With a strong background in IT, she offers valuable insights into data integration, backup solutions, software, and technology trends.

TOPICS

BY CONNECTORS

Skyvia podcast
